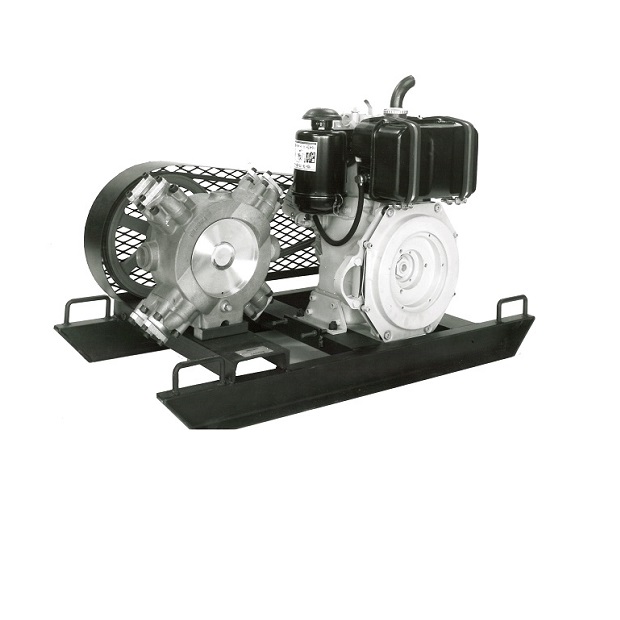

The Brahma is a high pressure water pump ideally suited to deep hole wireline drilling and for mud, water and cement drilling.
ITEM | SPECIFICATION |
---|---|
Maximum crank speed | 500 rpm |
Maximum flow | 24 gmp US (90.8 L/min) |
Maximum pressure | 800 psi (5515 kPa) |
Stroke | 1.125″ (28.5 mm) |
Bore | 1.825″ (47.6 mm) |
Suction port | 1.5″ NPT Thread |
Pressure ports | 1″ and 1.25″ NPT Thread |
Material | Aluminum Alloy Steel Inserts |
Weight | 76 lbs (34 kg) |
